Chassis Dynamometer Manufacturers
Type: High Perfomance
Application: Power testing. Engine Mapping, Performance Tuning
Spec.:            static: 600 Hp (2WD) 1,200 hp (4WD)
                 dynamic: 800 Hp (2WD) 1,600 hp (4WD)
                               Vmax: 200 mph (constant allowed maximum speed)

TAT Chassis Dynamometer

      CHD2 - 800

       - the right choice
            for high performance cars

DOWNLOAD a Dyno Movie --> Honda NSX Race Car on the Dyno (5,5Mb)

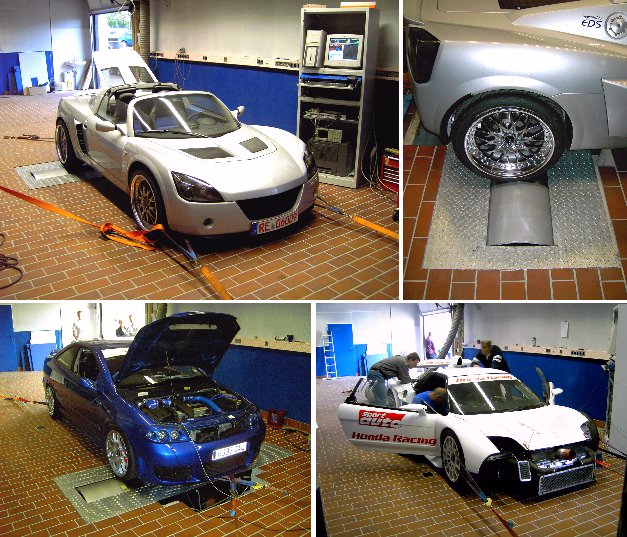

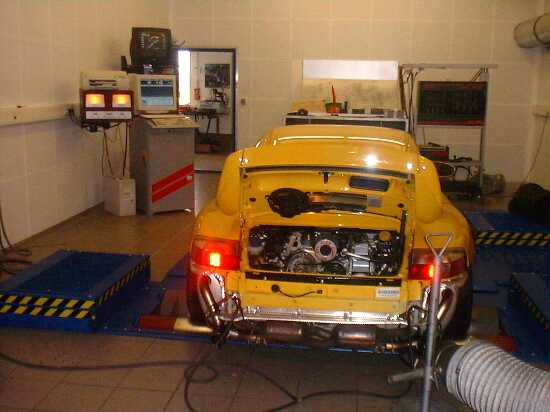

some very powerful and low cars have been sucessfully tested on
on TAT High Performance Chassis Dynamometers
always accurate, never any wheelslip:

current Le Mans 24 h Prototype approx. 650hp	Jaguar XJR V12 7,4l 747hp
Jaguar XJR V12 7,4l 747hp	Noble Street Version
Mosler 7l, 500hp, 700Nm (515 lbft)	565hp engine in Dallara Chassis

DOWNLOAD A DYNO MOVIE featuring this 747hp Jaguar Group C on
the TAT Chassis Dynamometer (click here or the picture)

Chassis Dyno ( Chassis Dynamometer ) Single Roller Concept, Models:

2 WD, xxx/800 Hp, ( inertia Chassis Dyno ( Chassis Dynamometer ), without retarder )
4 WD, xxx/1600 Hp, ( inertia Chassis Dyno ( Chassis Dynamometer ), without retarders )

2 WD, 600/800 Hp, ( loading Chassis Dyno ( Chassis Dynamometer ), with retarder )
4 WD, 1200/1600 Hp, ( loading Chassis Dyno ( Chassis Dynamometer ), with retarders )

for technical specification on the Single Roller Chassis Dyno click here ( Single Roller Chassis Dynamometer )

for floor plan for the Single Roller Chassis Dyno click here ( Single Roller Chassis Dynamometer )
(we offer the most compact Chassis Dyno on the market today)

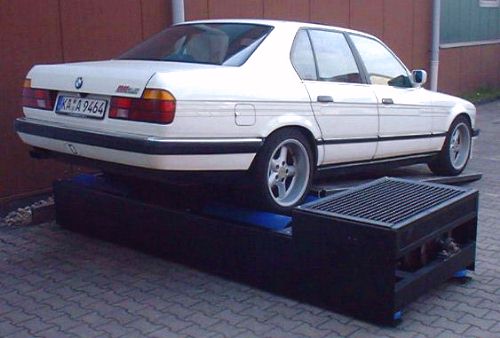

Chassis Dyno in Twin Roller Concept (diameter 318mm-450mm, 12"-18")
( Chassis Dynamometer )

Chassis Dyno ( Chassis Dynamometer ) in Twin Roller Concept, recommended sales prices:

2 WD, xxx/450 Hp, ( inertia Chassis Dyno ( Chassis Dynamometer ), without retarder )
4 WD, xxx/900 Hp, ( inertia Chassis Dyno ( Chassis Dynamometer ), without retarders )

2 WD, 450/800 Hp, ( loading Chassis Dyno ( Chassis Dynamometer ), with retarder )
4 WD, 900/1600 Hp, ( loading Chassis Dyno ( Chassis Dynamometer ), with retarders )

...loading: Real-Time Display Screen...please wait ...loading: POWER graph 2 ...please wait

---> see the Data Acquisition Software <---

TAT - Messysteme Gernweg 4 • 75015 Bretten • GERMANY
Tel. (++49) 7252 957583 • Fax (++49) 7252 957584 (from the US the international code is 01149)

Please e-mail to: chassis_dyno@chassisdyno.net for more information.

we send a reply to every e-mail - if you receive no reply we did not receive your e-mail !
